Контейнер-цистерна типа UN T11_Т11-25Н-01

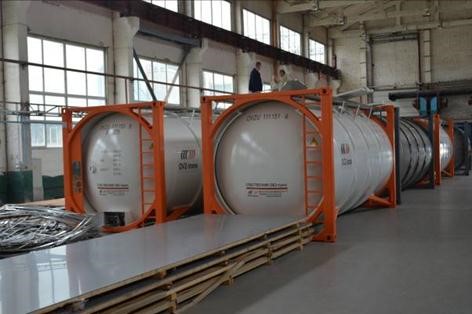

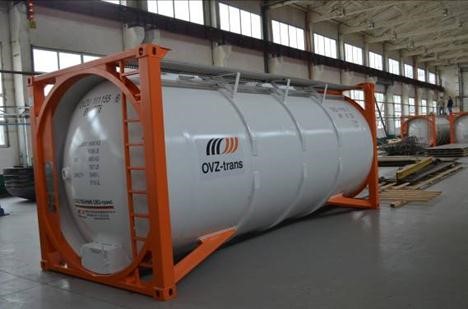

Контейнер-цистерна типа UN T11

Модель Т11-25Н-01

Основные виды

Контейнер-цистерна содержит следующие основные элементы:

1 - цистерна,

2 - торцевые рамы,

3 - подкосы крепления цистерны к торцевым рамам с подкладными листами,

4 – обечайки крепления цистерны к торцевым рамам,

5 – шпангоуты (кольца жесткости) цистерны,

6 – термометр,

7 –опоры крепления трапов площадок обслуживания,

8 –площадки обслуживания,

9 ,10 – отсеки с крышками,

11 - люк-лаз с крышкой,

12 – предохранительный клапан,

13 – верхнее устройство налива (слива) груза,

14 – сифонная труба верхнего устройства налива (слива) груза с фиксатором,

15 - нижнее устройство налива (слива) груза,

16 – трубы отвода из отсеков пролитого груза,

17 – клапан воздушной (газовой) магистрали,

18 – манометр,

19 – скобы-ручки,

20 - верхние угловые фитинги,

21 - нижние угловые фитинги,

22 – стойки торцевых рам,

23 – верхние балки торцевых рам,

24 – нижние балки торцевых рам,

25 – опорные кольца торцевых рам,

26 – лестницы,

27 – укрепляющие пластины торцевых рам,

28 – упоры подкосов,

29 – опорные пластины торцевых рам,

30 – пенал для документов,

31 – отсек нижнего устройства слива (налива) груза,

32 – пластина для заземления контейнера,

33 – винт для заземления контейнера,

34 – табличка с данными по цистерне,

35 – табличка о допущении по безопасности (КБК),

36 - табличка о допущении перевозки контейнера под таможенной пломбой (КТК),

37 - эмблема Российского морского регистра судоходства


Перечень грузов, допущенных к перевозке в контейнерах-цистернах моделей Т11-25Н и Т11-25Н-01

Наименование

груза

Номер ООН

груза

Класс

опасности

груза

Дополни-

тельный

знак

опасности

Плотность груза,

т/м3

Номер инструкции ООН и

дополнительные требования к контейнеру

1

2

3

4

5

6

1,1-DICHLOROETHANE

2362

3

1.17

T4, TP1

1,1-DIMETHOXYETHANE

2377

3

0.85

T7, TP1

1,2,3,6-TETRAHYDROPYRIDINE

2410

3

0.89

T4, TP1

1,2-BUTYLENEOXIDE

3022

3

1.02

T4, TP1

1,2-DIMETHOXYETHANE

2252

3

0.85

T4, TP1

1,2-EPOXY-3-ETHYLOXY

-PROPANE

2752

3

0.86

T2, TP1

1,3,5-TRIMETHYLBENZENE

2325

3

0.87

T2, TP1

1,3-DIMETHYLBUTYLAMINE

2379

3

8

0.72

T7, TP1

1-BROMO-3-METHYLBUTANE

2341

3

1.22

T2, TP1

CHLORBUTANES

1127

3

0.89

T4, TP1

1-ETHYL PIPERIDINE

2386

3

8

0.82

T7, TP1

1-METHYLPIPERIDINE

2399

3

8

0.82

T7, TP1

1-PENTOL

2705

8

0.81

T7, TP2

2,3-DIHYDROPYRAN

2376

3

0.89

T4, TP1

2,3-DIMETHYL BUTANE

2457

3

0.66

T7, TP1

2,4-TOLUYLENE DIAMINE

1709

6.1

1.03

T4, TP3

2-(2-AMINOETHOXY)-ETHANOL

3055

8

1.02

T4, TP1

2-BROMO BUTANE

2339

3

1.26

T4, TP1

2-BROMO PENTANE

2343

3

1.22

T4, TP1

2-CHLOR BUTANES

1127

3

0.87

T4, TP1

2-CHLORO PROPANE

2356

3

0.86

T11, TP2, TP13

2-CHLORO PROPENE

2456

3

0.92

T11, TP2

2-CHLORO PYRIDINE

2822

6

1.21

T7, TP2

2-DIMETHYL AMINO ACETO

NITRILE

2378

3

6.1

0.68

T7, TP1

2-ETHYL ANILINE

2273

6.1

0.99

T4, TP1

2-ETHYL BUTANOL

2275

3

0.83

T2, TP1

2-ETHYL BUTYR ALDEHYDE

1178

3

0.81

T4, TP1

2-ETHYL HEXYL AMINE

2276

8

3

0.78

T4, TP1

2-METHYL FURAN

2301

3

0.91

T4, TP1

2-METHYL-1-BUTENE

2459

3

0.65

T11, TP2

2-METHYL-2-BUTENE

2460

3

0.66

T7, TP1

2-METHYL-5-ETHYL PYRIDINE

2300

6.1

0.92

T4, TP1

2-METHYL PENTAN-2-OL

2560

3

0.81

T2, TP1

3,3-DIETHOXY PROPENE

2374

3

0.77

T4, TP1

3-CHLORO PROPANOL-1

2849

6

1.12

T4, TP1

3-METHYL BUTAN-2-1

2397

3

0.80

T4, TP1

3-TRIFLUORO METHYL ANILINE

2948

6.1

1.17

T7, TP2

4-METHOXY-4-METHYL-PENTAN

-2-ONE

2293

3

0.96 .9603

T2, TP1

5-METHYL HEXAN-2-1

2302

3

0.82

T2, TP1

ACETAL

1088

3

0.83

T4, TP1

ACETALDEHYDE

1089

3

0.78

T11, TP2, TP7

ACETALDEHYDE OXIME

2332

3

0.97

T4, TP1

ACETIC ACID

УКСУСНАЯ КИСЛОТА

(водные растворы с

концентрацией больше 25%)

2790

8

1.05

T7, TP2

ACETIC ACID,GLACIAL

УКСУСНАЯ КИСЛОТА,ЛЕДЯНАЯ

(водный раствор с

концентрацией больше 80%)

2789

8

3

1.05

T7, TP2

ACETIC ANHYDRIDE

1715

8

3

1.08

T7, TP2

ACETONE

АЦЕТОН

1090

3

0.79

T4, TP1

ACETONE OILS

АЦЕТОНОВЫЕ МАСЛА

1091

3

1.00

T4, TP1, TP8

ACETYL METHYL CARBINOL

2621

3

1.00

T2, TP1

ACROLEIN DIMER,

STABILIZED

2607

3

0.84

T2, TP1

ACRYLIC ACID,

INHIBITED

2218

8

1.06

T7, TP2

ALCOHOLS, N.O.S.

СПИРТЫ, Н.У.К.

1987

3

0.79

T7, TP2, TP8, TP28

ALDEHYDES,N.O.S.

АЛЬДЕГИДЫ, Н.У.К.

1989

3

1.05

T4, TP1, TP29

SULPHONIC ACID

ALKYLAMINES

N.O.S.(POLYALKYLAMINES)

2733

3

8

0.76

T11, TP1, TP27

ALLYL ACETATE

2333

3

6.1

0.94

T7, TP1, TP13

ALLYL ETHYL ETHER

2335

3

6.1

0.77

T7, TP1, TP13

ALLYL TRICHLORO SILANE

1724

8

3

1.09

T7, TP2, TP13

ALPHA-METHYL VALER

ALDEHYDE

2367

3

0.81

T4, TP1

ALPHA-METHYL BENZYL

ALCOHOL

2937

6.1

0.87

T4, TP1

ALPHA-PINENE

2368

3

0.86

T2, TP1

AMMONIA SOLUTION

ВОДНЫЕ РАСТВОРЫ АММИАКА

концентрация(10-35)%

2672

8

0.77

T7, TP1

AMMONIUM DINITRO-ORTO

-CRESOLS

1843

6.1

1.05

T3, TP33

AMYL BUTYRATES

2620

3

0.87

T2, TP1

AMYL ACETATES

1104

3

0.88

T2, TP1

AMYL ACID PHOSPHATE

2819

8

0.95

T4, TP1

AMYL ALCOHOLS

1105

3

0.81

T2, TP1

AMYL AMINE

1106

3

8

0.76

T7, TP1

AMYL CHLORIDES

1107

3

0.88

T4, TP1

AMYLENE NORMAL

1108

3

1.04

T11, TP2

AMYL FORMATES

1109

3

0.89

T2, TP1

AMYL MERCAPTAN

1111

3

0.86

T4, TP1

AMYL METHYL KETONE

1110

3

0.82

T2, TP1

AMYL NITRATE

1112

3

0.85

T2, TP1

AMYL NITRITE

1113

3

0.85

T4, TP1

ANILINE

1547

6.1

1.020

T7, TP2

ANISOLE

2222

3

1.00

T2, TP1

ANISOYL CHLORIDE

1729

8

1.11

T3, TP33

BENZENE

БЕНЗОЛ

1114

3

0.88

T4, TP1

BENZONITRILE

2224

6.1

1.01

T7, TP2

BENZOTRIFLUORIDE

2338

3

1.02

T4, TP1

BENZYL DIMETHYL AMINE

2619

8

3

0.93

T7, TP2

BENZYLIDENE CHLORIDE

1886

6.1

1.26

T7, TP2

BROMOMETHYL PROPANES

2342

3

1.26

T4, TP1

BUTANEDIONE

2346

3

1.00

T4, TP1

BUTANOLS

1120

3

0.81

T2, TP1

BUTYL ACRYLATE

2348

3

0.91

T2, TP1

BUTYL BENZENES

2709

3

1.00

T2, TP1

BUTYL MERCAPTAN

2347

3

0.86

T4, TP1

BUTYL METHYL ETHER

2350

3

0.76

T4, TP1

BUTYL NITRITES

2351

3

1.05

T2, TP1

BUTYL PROPIONATE

1914

3

0.78

T2, TP1

BUTYL TOLUENES

2667

6.1

0.94

T4, TP1

BUTYL VINYL ETHER

2352

3

1.00

T4, TP1

BUTYL ACETATES

1123

3

0.86

T2, TP1

BUTYL ACID PHOSPHATE

1718

8

0.97

T4, TP1

BUTYL AMINE

1125

3

8

0.74

T7, TP1

BUTYL TRICHLORO SILANE

1747

8

3

1.24

T7, TP2, TP13

BUTYR ALDEHYDE

1129

3

0.82

T4, TP1

BUTYR ALDOXIME

2840

3

0.92

T2, TP1

BUTYRIC ACID

МАСЛЯНАЯ КИСЛОТА

2820

8

0.96

T4, TP1

BUTYRIC ANHYDRIDE

2739

8

0.98

T4, TP1

BUTYRO NITRILE

2411

3

6.1

0.79

T7, TP1, TP13

CAMPHOR OIL

КАМФОРНОЕ МАСЛО

1130

3

1.00

T2, TP1

CAPROIC ACID

КАПРОНОВАЯ КИСЛОТА

2829

8

0.93

T4, TP1

CHLORO ANILINES

2019

6.1

1.21

T7, TP2

CHLORO BENZENE

1134

3

1.11

T2, TP1

CHLORO BENZO TRIFLUORIDES

2234

3

1.02

T2, TP1

CHLORO PHENOLS

2021

6.1

1.24

T4, TP1

CHLORO TOLUENES

2238

3

1.08

T2, TP1

CRESOLS

2076

6.1

1.05

T7, TP2

CYCLO HEPTANE

2241

3

0.81

T4, TP1

CYCLO HEPTATRIENE

2603

3

6.1

0.80

T7, TP1, T13

CYCLO HEPTENE

2242

3

0.82

T4, TP1

CYCLO HEXANE

1145

3

0.78

T4, TP1

CYCLO HEXANONE

1915

3

0.95

T2, TP1

CYCLO HEXENE

2256

3

0.81

T4, TP1

CYCLO HEXYL ACETATE

2243

3.3

0.94

T2, TP1

CYCLO HEXYL AMINE

2357

8

3

0.87

T7, TP2

CYCLO HEXYL MERCAPTAN

3054

3

0.94

T2, TP1

CYCLO PENTANE

1146

3

0.75

T7, TP1

CYCLO PENTANOL

2244

3

0.95

T7, TP1

CYCLO PENTANONE

2245

3

0.94

T2, TP1

CYCLO PENTENE

2246

3

0.77

T7, TP2

CYMENES

2046

3

0.86

T2, TP1

DECA HYDRO NAPHTHALENE

1147

3

0.93

T2, TP1

DIBUTYL AMINE

2248

8

3

0.77

T7, TP2

DIAMYL AMINE

2841

6.1

3

1.00

T4, TP1

DIACETONE ALCOHOL

1148

3

0.96

T2, TP1

DIALLYL AMINE

2359

3

8

1.00

T7, TP1

DIALLYL ETHER

2360

3

6.1

0.81

T7, TP1, TP13

DIBUTYL AMINO ETHANOL

2873

6.1

0.88

T4, TP1

DIBUTYL ETHERS

1149

3

0.77

T2, TP1

DICHLO ROACETYL CHLORIDE

1765

8

1.11

T7, TP2

DICHLORO ETHYLENE

1150

3

1.26

T7, TP2

DICHLORO ETHYL ETHER

1916

6.1

3

1.22

T7, TP2

DICHLORO ISOPROPYL ETHER

2490

6.1

1.11

T7, TP2

DICHLORO PENTANES

1152

3

1.09

T2, TP1

DICHLORO PHENYL

TRICHLORO SILANE

1766

8

1.22

T7, TP2, TP13

DICHLORO PROPENE

2047

3

1.21

T4, TP1

DICYCLO HEXYL AMINE

2565

8

0.82

T4, TP1

DICYCLO PENTADIENE

2048

3

0.98

T2, TP1

DIETHOXY METHANE

2373

3

0.83

T4, TP1

DIETHYL CARBONATE

2366

3

0.98

T2, TP1

DIETHYL SULPHIDE

2375

3

1.04

T7, TP1, TP13

DIETHYL AMINE

1154

3

8

0.72

T7, TP1

DIETHYL AMINO ETHANOL

2686

3

0.88

T7, TP2

DIETHYL AMINO PROPYL

AMINE

2684

8

3

0.76

T4, TP1

DIETHYL BENZENE

2049

3

0.88

T2, TP1

DIETHYL DICHLORO SILANE

1767

8

3

1.05

T7, TP2, TP13

DIETHYLENE TRIAMINE

2079

8

1.00

T7, TP2

DIETHYL ETHER

1155

3

0.71

T11, TP2

DIETHYL KETONE

1156

3

0.82

T4, TP1

DIETHYL SULPHATE

1594

6.1

1.18

T7, TP2

DIISOBUTYL AMINE

2361

3

8

0.75

T4, TP1

DIISOBUTYLENE

2050

3

0.72

T4, TP1

DIISOBUTYL KETONE

1157

3

0.800

T2, TP1

DIISOPROPYL AMINE

1158

3

8

0.72

T7, TP1

DIISOPROPYL ETHER

1159

3

0.73

T4, TP1

DIMETHYL AMINE

1160

3

0.68

T7, TP1

DIMETHYL CARBONATE

1161

3

1.07

T4, TP1

DIMETHYL DISULPHIDE

2381

3

1.06

T4, TP1

DIMETHYL-N-PROPYLAMINE

2266

3

8

0.76

T7, TP2, TP13

DIMETHYL AMINE

1160

3

8

0.68

T7, TP1

DIMETHYL CYCLO HEXANES

2263

3

0.78

T4, TP1

DIMETHYL ETHANOL AMINE

2051

3

0.89

T7, TP2

DINITROTOLUENES

2038

6.1

1.28

T7, TP2

DIOXANE

1165

3

1.03

T4, TP1

DIOXOLANE

1166

3

1.000

T4, TP1

DIPENTENE

2052

3

0.84

T2, TP1

DIPHENYL DICHLORO SILANE

1769

8

3

1.22

T7, TP2, TP13

DIPROPYL KETONE

2710

3

0.82

T2, TP1

DIPROPYL AMINE

2383

3

8

0.74

T7, TP1

DIPROPYL ETHER

2384

3

0.74

T4, TP1

DIVINYL ETHER

1167

3

0.77

T11, TP2

EPICHLOROHYDRIN

2023

6.1

3

1.20

T7, TP2, TP13

ETHANOL

1170

3

0.79

T4, TP1

ETHANOL AMINE

2491

8

1.02

T4, TP1

ETHYL CROTONATE

1862

3

0.98

T4, TP2

ETHYL METHACRYLATE

2277

3

0.91

T4, TP1

ETHYL PROPYL ETHER

2615

3

0.88

T4, TP1

ETHYL-2-CHLOROPROPIONATE

2935

3

1.11

T2, TP1

ETHYL ACETATE

1173

3

1.10

T4, TP1

ETHYL ACRYLATE

1917

3

0.92

T4, TP1

ETHYL AMINE

(водные растворы)

2270

3

8

1.03

T7, TP1

ETHYLAMYL KETONE

2271

3

0.83

T2, TP1

ETHYL BENZENE

1175

3

0.87

T4, TP1

ETHYL BORATE

1176

3

0.86

T4, TP1

ETHYL BUTYL ACETATE

1177

3

0.88

T2, TP1

ETHYL BUTYL ETHER

1179

3

0.76

T4, TP1

ETHYL BUTYRATE

1180

3

0.87

T2, TP1

ETHYL CHLORO ACETATE

1181

6.1

3

1.16

T7, TP2

ETHYLENE DIAMINE

1604

8

3

0.96

T7, TP2

ETHYLENE GLYCOL

MONOETHYL ETHER

1171

3

0.93

T2, TP1

ETHYLENE GLYCOL MONOETHYL

ETHER ACETATE

1172

3

0.97

T2, TP1

ETHYLENE GLYCOL

MONOMETHYL ETHER

1188

3

0.97

T2, TP1

ETHYLENE GLYCOL MONOMETHYL
ETHER ACETATE

1189

3

1.01

T2, TP1

ETHYL HEX ALDEHYDE

1191

3

0.82

T2, TP1

ETHYL PROPIONATE

1195

3

0.90

T4, TP1

FLUORO ANILINES

2941

6.1

1.17

T4, TP1

FLUORO BENZENE

2387

3

1.02

T4, TP1

FLUORO TOLUENES

2388

3

1.00

T4, TP1

FORMALDEHYDE (SOLUTIONS)

(РАСТВОРЫ)

1198

3

0.8250

T4, TP1

FORMIC ACID

МУРАВЬИНАЯ КИСЛОТА

1779

8

1.22

T7, TP2

FUEL,AVIATION,

АВИАЦИОННОЕ ТОПЛИВО

1863

3

0.80

T2, TP1

FURFURAL

1199

3

1.16

T7, TP2

FURFURYL ALCOHOL

2874

6.1

1.13

T4, TP1

FURFURYL AMINE

2526

3

8

1.13

T4, TP1

GLYCEROL-ALPHA-

MONOCHLOROHYDRINE

2689

6.1

1.26

T4, TP1

HEPTANE

1206

3

0.68

T4, TP1

1 - HEXENE

2370

3

0.67

T4, TP1

HEXALDEHYDE

1207

3

0.84

T2, TP1

HEXA METHYLENE DIAMINE

1783

8

0.87

T4, TP1

HEXANES

1208

3

0.66

T4, TP1

HEXANOLS

2282

3

0.82

T2, TP1

ISOBUTANOL

1212

3

0.81

T2, TP1

ISOBUTYL ACRYLATE

2527

3

0.87

T2, TP1

ISOBUTYL METHACRYLATE

2283

3

0.86

T2, TP1

ISOBUTYL PROPIONATE

2394

3

0.89

T2, TP1

ISOBUTYL ACETATE

1213

3

0.87

T4, TP1

ISOBUTYL AMINE

1214

3

8

0.74

T7, TP1

ISOBUTYR ALDEHYDE

2045

3

0.79

T4, TP1

ISOBUTYRIC ACID

2529

3

8

0.95

T4, TP1

ISOHEPTENE

2287

3

0.70

T4, TP1

ISOHEXENE

2288

3

0.66

T11, TP1

ISOOCTENE

1216

3

0.69

T4, TP1

ISOPRENE

1218

3

0.689

T11, TP2

ISOPROPANOL

1219

3

0.79

T4, TP1

ISOPROPENYL ACETATE

2403

3

0.88

T4, TP1

ISOPROPENYL BENZENE

2303

3

1.02

T2, TP1

ISOPROPYL BUTYRATE

2405

3

0.88

T2, TP1

ISOPROPYL ISOBUTYRATE

2406

3

0.88

T4, TP1

ISOPROPYL PROPIONATE

2409

3

0.87

T4, TP1

ISOPROPYL ACETATE

1220

3

0.87

T4, TP1

ISOPROPYL AMINE

1221

3

8

0.69

T11, TP2

ISOPROPYLBENZENE

1918

3

0.86

T2, TP1

KEROSENE

КЕРОСИН

1223

3

0.84

T2, TP2

MERCAPTAN (смеси)

1228

3

6.1

1.00

T7, TP1, TP28

MESITYL OXIDE

1229

3

0.87

T2, TP1

METHACRYL ALDEHYDE

2396

3

6.1

1.02

T7, TP1, TP13

METHACRYLIC ACID

МЕТАКРИЛОВАЯ КИСЛОТА

2531

8

1.0253

T7, TP1, TP18, TP30

METHANOL

1230

3

6.1

0.79

T7, TP2

METHYL ALLYL CHLORIDE

2554

3

1.09

T4, TP1, TP13

METHYL CYCLOHEXANE

2296

3

0.77

T4, TP1

METHYL CYCLOHEXANONE

2297

3

0.92

T2, TP1

METHYL ISOBUTYL CARBINOL

2053

3

0.81

T2, TP1

METHYL PROPYL ETHER

2612

3

0.74

T7, TP2

METHYL-2-CHLOROPROPIONATE

2933

3

1.11

T2, TP1

METHYL ACETATE

1231

3

0.93

T4, TP1

METHYL ACRYLATE

1919

3

0.96

T4, TP1, TP13

METHYLAL

1234

3

0.87

T7, TP2

METHYL AMYL ACETATE

1233

3

0.89

T2, TP1

METHYL BUTYRATE

1237

3

0.90

T4, TP1

METHYL CYANIDE

1648

3

6.1

1.05

T7, TP2

METHYL CYCLOHEXANOLS

2617

3

0.94

T2, TP1

METHYL CYCLOPENTANE

2298

3

0.73

T4, TP1

METHYL FORMATE

1243

3

0.98

T11, TP2

METHYL ISOBUTYL KETONE

1245

3

0.800

T4, TP1

METHYL ISOPROPENYL KETONE

1246

3

0.82

T4, TP1

METHYL ISOVALERATE

2400

3

0.888

T4, TP1

METHYL METHACRYLATE

1247

3

0.94

T4, TP1

4-METHYL MORPHOLINE

2535

3

1.00

T7, TP1

METHYL PENTADIENE

2461

3

0.70

T4, TP1

METHYL PROPIONATE

1248

3

0.91

T4, TP1

METHYL PROPYL KETONE

1249

3

0.81

T4, TP1

METHYL TETRAHYDRO FURAN

2536

3

0.94

T4, TP1

METHYL TRICHLORO SILANE

1250

3

8

1.28

T11, TP2

METYL BUTYL ETHER

2398

3

0.76

T7, TP1

MOTOR SPIRIT

МОТОРНОЕ ТОПЛИВО

1203

3

1.00

T4, TP1

N,N-DIETHYL ANILINE

2432

3

0.94

T4, TP1

N,N-DIETHYL ETHYLENE

DIAMINE

2685

8

3

1.18

T7, TP2

N,N-DIMETHYL ANILINE

2253

8

0.96

T7, TP2

N,N-DIMETHYL

CYCLOHEXYL AMINE

2264

6.1

3

0.87

T7, TP2

N,N-DIMETHYL FORMAMIDE

2265

8

1.23

T2, TP2

N-AMINO ETHYL PIPERAZINE

2815

8

1.00

T4, TP1

N-BUTYL ANILINE

2738

6.1

0.955

T7, TP2

N-ETHYL-N-BENZYL ANILINE

2274

6.1

0.95

T4, TP1

N-ETHYL ANILINE

2272

6.1

0.96

T4, TP1

N-ETHYL BENZYL TOLUIDINES

2753

6.1

0.94

T7, TP1

N-ETHYL TOLUDINES

2754

6.1

3

0.94

T7, TP2

N-METHYL ANILINE

2294

6.1

0.99

T4, TP1

N-METHYL BUTYL AMINE

2945

3

8

0.74

T7, TP1

N-BUTYL IMIDAZOLE

2690

6.1

1.04

T7, TP2

NAPHTHYL AMINE

2077

6.1

1.12

T4, TP3

NICOTINE SULPHATE

1658

6.1

1.01

T7, TP2

NITRO ANISOLES

2730

6.1

1.25

T4, TP1

NITRO BENZENE

1662

6.1

1.20

T7, TP2

NITRO ETHANE

2842

3

1.07

T2, TP1

NITRO PROPANES

2608

3

0.99

T2, TP1

NITRO TOLUENES

1664

6.1

1.16

T7, TP2

NITRO XYLENES

1665

6.1

1.14

T7, TP2

NONANES

1920

3

0.72

T2, TP1

N-BUTYL METHACRYLATE

2227

3

0.90

T2, TP1

N-DECANE

2247

3

0.73

T2, TP1

N-HEPTENE

2278

3

0.700

T4, TP1

OCTADIENE

2309

3

0.77

T4, TP1

OCTANE

1262

3

0.70

T4, TP1

ORTHO-ANISIDINE

2431

6.1

1.09

T4, TP1

PARALDEHYDE

1264

3

0.99

T2, TP1

PENTAN-2,4-DIONE

2310

3

0.98

T4, TP1

PENTANES

1265

3

0.63

T11, TP2

PETROLEUM CRUDE OIL

НЕФТЬ СЫРАЯ

1267

3

0.99

T2, TP1

PETROLEUM DISTILLATES,

N.O.S.

ДИСТИЛЛЯТЫ НЕФТИ

1268

3

0.70

T7, TP1, TP8, TP9, TP28

PHENETIDINES(ORTHO,PARA-)

2311

6.1

1.00

T4, TP1

PHENOL SOLUTIONS

ФЕНОЛ (растворы)

2821

6.1

1.06

T7, TP2

PHENOLSULPHONIC ACID

1803

8

1.16

T7, TP2

PHENYL ACETO NITRILE

2470

6.1

1.02

T4, TP1

PHENYL ACETYL CHLORIDE

2577

8

1.17

T7, TP2

PHENYL HYDRAZINE

2572

6.1

1.10

T7, TP2

PICOLINES

2313

3

8

0.96

T4, TP1

PINE OIL

1272

3

1.00

T2, TP1

PIPERAZINE

(65% водный раствор)

2579

8

1.03

T4, TP3

PROPANE THIOLS

2402

3

0.84

T4, TP1, TP13

PROPANOL

1274

3

0.80

T4, TP1

PROPIL CHLORIDE

1278

3

0.89

T7, TP2

PROPION ALDEHYDE

1275

3

0.81

T7, TP1

PROPIONIC ACID

ПРОПИОНОВАЯ КИСЛОТА

1848

8

3

1.14

T4, TP1

PROPIONIC ANHYDRIDE

2496

8

0.81

T4, TP1

PROPION NITRILE

2404

3

6.1

0.78

T7, TP1, TP13

PROPYL BENZENE

2364

3

0.86

T2, TP1

PROPYL ACETATE

1276

3

0.89

T4, TP1

PROPYL AMINE

1277

3

8

0.71

T7, TP1

PROPYLENE DIAMINE

2258

8

3

0.88

T7, TP2

PROPYLENE DICHLORIDE

1279

3

1.16

T4, TP1

PROPYLENE OXIDE

1280

3

0.86

T11, TP2, TP7

PROPYLENE TETRAMER

2850

3

0.78

T2, TP1

PYRIDINE

1282

3

8

0.98

T4, TP2

PYRROLIDINE

1922

3

0.85

T7, TP1

SHALE OIL

МАСЛО СЛАНЦЕВОЕ

1288

3

1.05

T2, TP1

STYRENE MONOMER,INHIBITED

2055

3

0.91

T2, TP1

TERPENE HYDROCARBONS,N.O.S.

2319

3

0.94

T4, TP1, TP29

TERPINOLENE

2541

3

0.86

T2, TP1

TETRA ETHYL SILICATE

1292

3

0.76

T2, TP1

TETRA HYDROFURAN

2056

3

0.89

T4, TP1

TETRA HYDROFURFURYL AMINE

2943

3

1.13

T2, TP1

TETRA METHYL AMMONIUM

HYDROXIDE

1835

8

1.17

T7, TP2

THIO GLYCOL

2966

6.1

1.18

T7, TP2

THIO PHENE

2414

3

1.06

T4, TP1

TOLUENE

ТОЛУОЛ

1294

3

0.87

T4, TP1

TOLUIDINES

1708

6.1

0.99

T7, TP2

TRIALLYL AMINE

2610

3

8

0.76

T4, TP1

TRIBUTYL AMINE

2542

8

0.78

T7, TP2

TRICRESYL PHOSPHATE

2574

6.1

1.07

T7, TP2

TRIETHYL PHOSPHITE

2323

3

0.97

T2, TP1

TRIETHYL AMINE

1296

3

8

0.72

T7, TP1

TRI ISOBUTYLENE

2324

3

0.76

T4, TP1

TRI METHYL BORATE

2416

3

0.92

T7, TP1

TRI METHYL PHOSPHITE

2329

3

1.20

T2, TP1

TRI METHYL AMINE

(водные растворы)

1297

3

8

0.67

T11, TP1

TRI METHYL CHLORO SILANE

1298

3

8

0.86

T7, TP2, TP13

TRI METHYL ETHYLENE

2460

3

0.71

T7, TP1

TRI PROPYL AMINE

2260

3

8

0.76

T4, TP1

TURPENTINE

1299

3

0.83

T2, TP1

TURPENTINE SUBSTITUTE

1300

3

0.83

T2, TP1

UNDECANE

2330

3

0.74

T2, TP1

VALERALDEHYDE

2058

3

0.81

T4, TP1

VALERYL CHLORIDE

2502

8

3

1.02

T7, TP2

VINYL CHLOROACETATE

2589

6.1

3

1.16

T7, TP2

VINYL TOLUENES

2618

3

0.87

T2, TP1

VINYL ACETATE

1301

3

0.93

T4, TP1

VINYL ETHYL ETHER

1302

3

0.76

T11, TP2

VINYL ISOBUTYL ETHER

1304

3

0.75

T4, TP1

XYLENES

1307

3

0.88

T2, TP1

XYLIDINES

1711

6.1

0.99

T7, TP2



Контейнер-цистерна Т11-25Н-01. Виды сбоку



Контейнер-цистерна Т11-25Н-01. Виды сверху и с торцов

Контейнеры-цистерны Т11-25Н-01 в заводском цеху Осиповичского вагоностроительного завода

(Республика Беларусь)

Описание: DSC_0148

Описание: DSC_0151

UN T11_Т11-25Н-01 Вернуться в список статей
